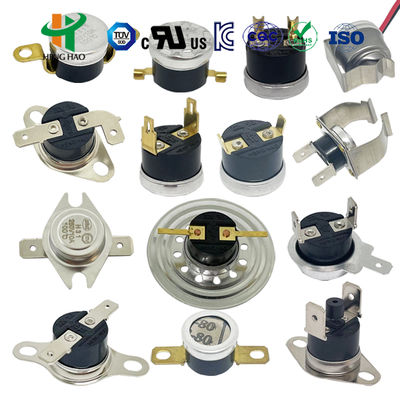

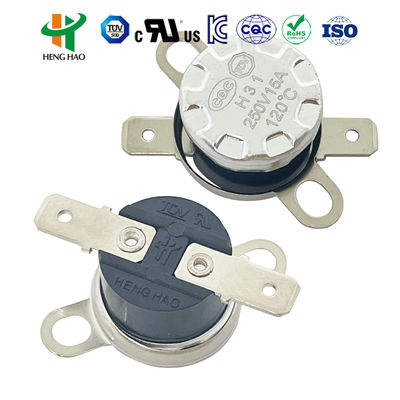

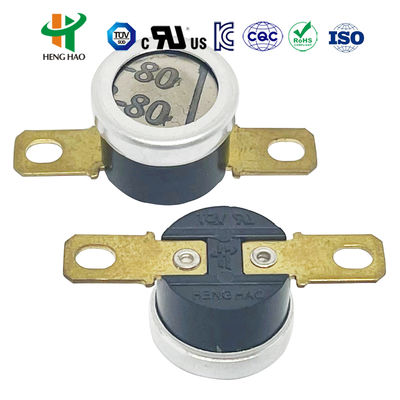

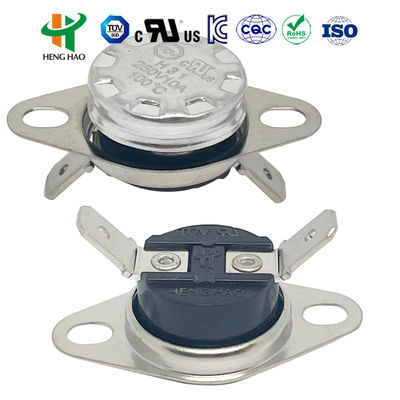

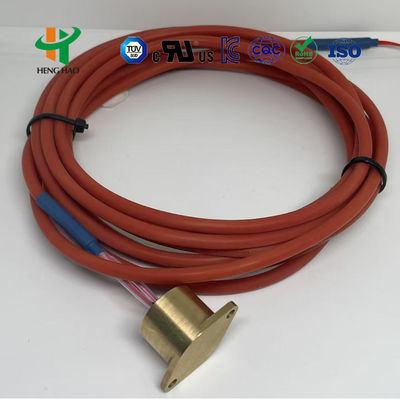

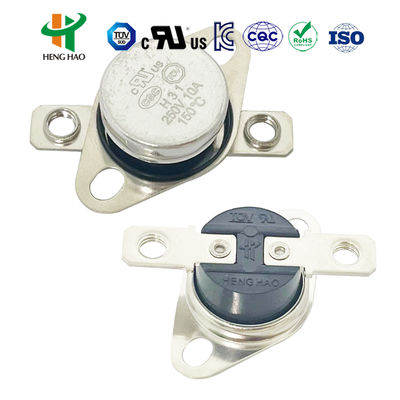

KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact

KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact
KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact
KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact

Grande immagine :  KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact

Dettagli:
Luogo di origine: Cina
Marca: HENGHAO
Certificazione: UL
Numero di modello: KSD201
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000
Prezzo: USD 0.15
Imballaggi particolari: 2100pcs/carton
Tempi di consegna: 10 ~ 15 giorni di lavoro
Termini di pagamento: T/t
Capacità di alimentazione: 100000pcs al mese
Contatto

KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact

descrizione
Ciclo vitale: 100000 cicli Tensione e corrente: 250V 16A
Tipo di contatto: normalmente chiuso o normalmente aperto Tipo di commutazione: Ripristino automatico o ripristino manuale
Evidenziare:

0~250℃ KSD301 Bimetal Thermostat

,

±3/±5/±10℃ Temperature Controlled Switch

,

Normally Closed or Normally Open Temperature Protector

Temperature Controlled Switch KSD301-R Temperature Protector
The KSD301 temperature controller operates on the principle of bimetal discs that snap into action when sensing temperature changes. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, long lifespan, and reduced radio interference.
KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact 0
KSD301 Thermostat Specifications
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact 1
KSD301 Auto Reset vs Manual Reset Types
  • Manual Reset Type: Uses bimetallic strip temperature sensing. Requires manual button press to reset after temperature drops approximately 20°C from trip point (4-6N force recommended). Requires minimum 20.4mm clearance between reset button and cover.
  • Auto Reset Type: Uses bimetallic strip temperature sensing. Automatically resets when temperature drops to specified level without manual intervention.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open temp. Reset temp. Open temp. Reset temp. Open temp. Reset temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
This product has UL, CQC, TUV and RoHS certification approval.
KSD301 Bimetal Thermostat Temperature Controlled Switch With 0~250℃ Range ±3/±5/±10℃ Accuracy And Normally Closed Or Normally Open Contact 2
